Validation

We can identify some cases that have a reference solution (either analytical or established experimentally) and solve the same with Lizzy to compare results. In the following, we present a collection of validation cases, with the aim of seeing it grow over time.

Channel flow experiment

The channel flow experiment, as described in the well-known work by Weitzenbock [1], has an analytical solution. For a constant inlet pressure and a perfectly one-dimensional flow, the time of arrival of the flow front at a distance \(x=L\) from the inlet is expressed as:

(1)\[t = \frac{\phi \mu L^2}{2 \Delta p K_{xx}}\]

Case definition

To conduct the channel flow experiment, we will use the following values:

  • \(\phi\) = 0.5

  • \(\mu = 0.1\) Pa·s

  • \(\Delta p =\) 1.0E+05 Pa

  • \(K_{xx}\) = 1.0E-10 m²

By plugging the values in Eq. (1), and considering a distance L = 1m, we obtain a theoretical arrival time of: \(t_{ref}\) = 2500s seconds. This shall be considered as the reference solution.

Lizzy solution

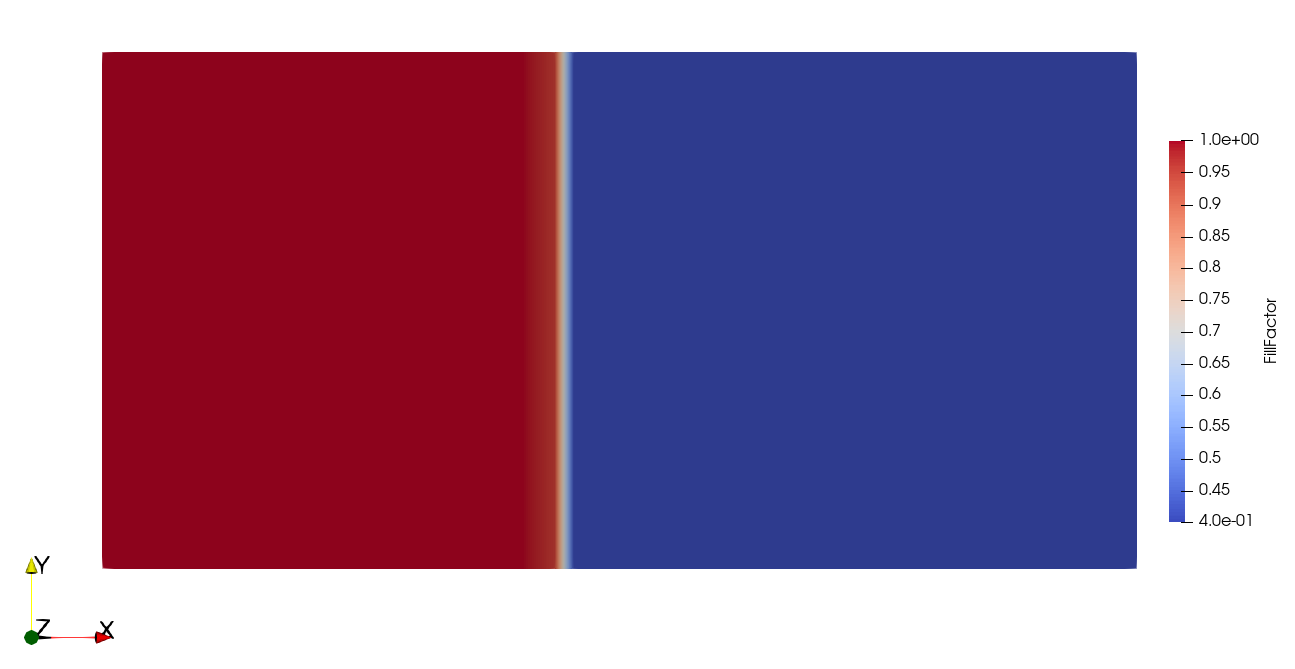

The simulated scenario is the case that was solved in the Channel flow experiment tutorial, with dimensions L = 1 m, W = 0.5 m.

../_images/rect_mesh_1024elem_fill.png

Running the simulation with increasing number of elements we obtain the following results:

Number of elements

Fill time [s]

% Error

16

2530.1

1.20

64

2510.5

0.42

256

2503.2

0.13

1024

2500.7

0.03

4096

2500.1

0.005
../_images/validation_rect_err.png

As the number of elements increases, the fill time of the part approaches the theoretical solution and the error decreases.

The script and meshes to run this validation can be downloaded from validation/channel_flow.

Radial flow experiment

For this validation we simulate a radial infusion experiment with an isotropic material. In presence of constant viscosity \(\mu\), constant inlet pressure differential \(\Delta p\) applied between an inner radius \(r_0\) and the outher boundary, the time of arrival of the flow front at a radial distance \(r\) from the center has an analytical solution [4]:

(2)\[t(r) = \frac{\mu r^2 \phi}{2 K_{rr} \Delta p } \left( \ln \left( \frac{r}{r_0} \right) - \frac{1}{2} \left( 1 - \left( \frac{r_0}{r} \right)^2 \right) \right)\]

Case definition

To conduct the radial flow experiment, we will use the following values:

  • \(r_0\) = 1 m

  • \(R\) = 2 m

  • \(\mu = 0.1\) Pa·s

  • \(\phi\) = 0.6

  • \(\Delta p =\) 1.0E+05 Pa

  • \(K_{rr}\) = 1.0E-10 m²

By plugging the values in Eq. (2), and considering a distance \(r = R\), we obtain a theoretical arrival time of: \(t_{ref}(R)\) = 3817.77 seconds (let’s round up to 3818 seconds). This shall be considered as the reference solution.

We construct a set of meshes of a quarter annulus with inner radius \(r_0\) and outer radius \(R\). We can see that the flow front arrival at position \(r = R\) happens when the part is filled. Therefore, we can directly compare the fill time of the part with the theoretical solution.

Running the simulation with increasing number of elements we obtain the following results:

Number of elements

Fill time [s]

% Error

30

3798.13

0.52

100

3824.39

0.17

400

3822.26

0.11

900

3820.55

0.07

1600

3819.34

0.04

3600

3817.95

0.001
../_images/radial_validation.gif

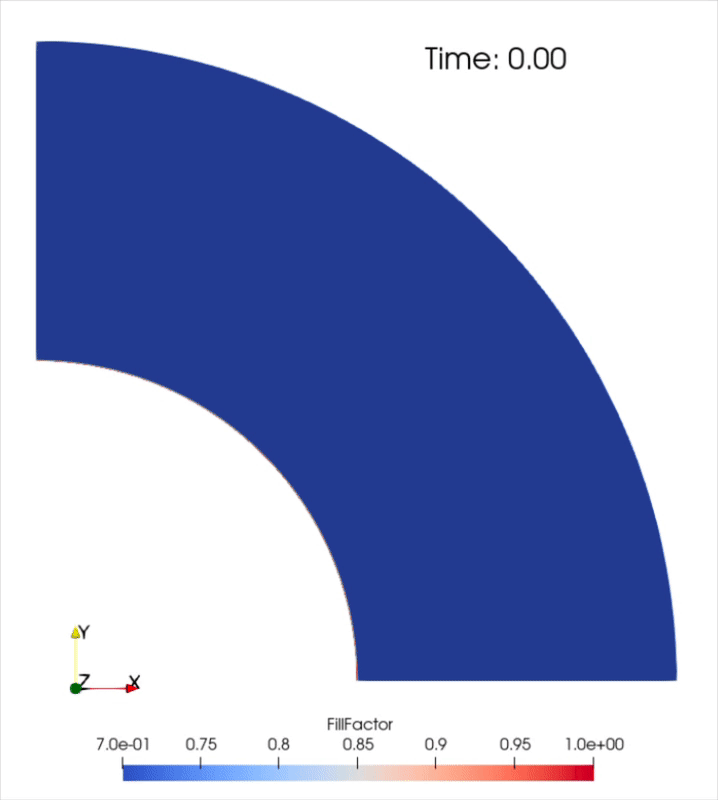

Fill simulation for N = 3600 elements

The script and mesh to run this validation can be downloaded from validation/radial_flow.
